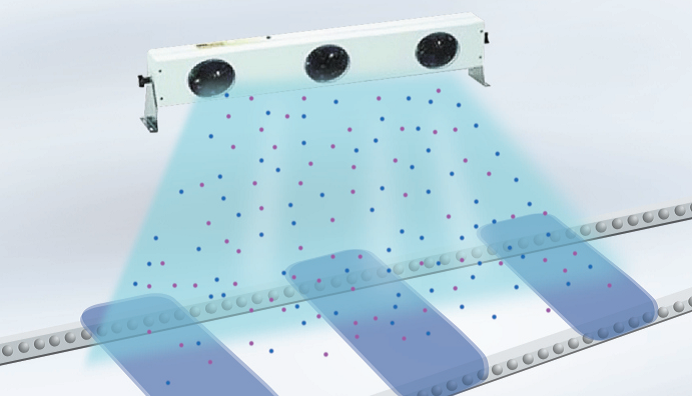

The Aerostat FPD series of products has been designed to control electrostatic charges in assembly and electronics manufacturing applications requiring stable operation with exceptionally fast discharge time performance. The FPD overhead products are built for reliability and simplicity.
○ High output, high velocity fans
○ Inherently balanced ionization
○ Ionization indicator light
○ Built-in emitter point cleaner
○ Optional fan air filter
| Input Voltage |
120 VAC, 60 Hz: 0.3A (2-fan); 0.4A (3-fan); 0.5A (4-fan) 230 VAC, 50 Hz: 0.2A (2-fan); 0.2A (3-fan); 0.3A (4-fan) |
| Balance | 0 ±10V |
| Discharge | 1.0 sec @ 1’ center blower position; fan high(1000-100V)1 |
| Switch | ON/OFF switch |
| Fan Speed | Recessed fan speed control |
| Indicator | Ionization ON light |
| Audible Noise | 59-69 dBA (max), measured @ 2’ (0.6m) from blower |
| Air Velocity2 |
Fan Speed: 1 ft 2 ft 3 ft 4 ft 5 ft Low: 500 350 250 200 150 High: 1000 700 500 400 300 |
| Operating Env. | Temperature 50-90°F (10-32°C); humidity 30-70% RH, non-condensing |
| Ozone | Equilibrium concentration <0.02 ppm |
| Air Filter | 30 ppi open cell polyurethane foam (optional) |
| Weight | 2-fan: 10 lb (4.5 kg); 3-fan: 13 lb (5.9 kg); 4-fan: 16 lb (7.3 kg) |
| Dimensions |
2-fan: 23.25L x 4.0H x 6.25D in. (590 x 100 x 160 mm); 3-fan: 35.5L x 4.0H x 6.25D (900 x 100 x 160 mm); 4-fan: 47.75L x 4.0H x 6.25D (1215 x 100 x 160 mm) |
| Mounting | Stainless steel bracket |
| Enclosure | Powder-coated white enamel aluminum |
| Warranty | Two year limited warranty |
| Certifications |
 230V, 50 Hz
|
• Aerostat FPD 有 2 fan，3 fan，4 fan 的机型，每个型号的长度，都是为了不同的应用需求来设计，以达到更大的覆盖范围。
